OS Max OS Max 19120 95AX Ringed .95 Airplane Glow Engine W/Mflr

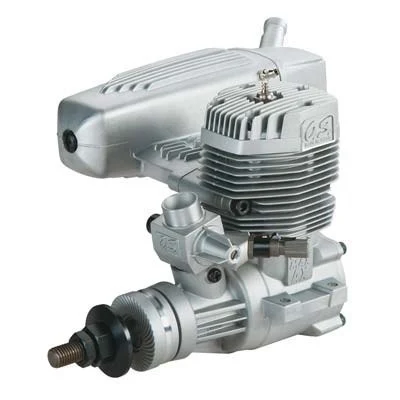

This is the O.S. Max 95 AX ABL Aircraft Engine with Muffler.

FEATURES: Same mounting dimensions as the O.S. Max .75FX
Power Box muffler design provides more volume for increased power in
a very compact shape
Angular head design offers increased surface area for better cooling
Ball bearing-supported crankshaft
61C carburetor with diagonally placed needle valve eliminating
remote needle valve placement
Two year limited warranty

INCLUDES: O.S. Max 95 AX ABL Aircraft Engine with E4040 muffler, carburetor,
#8 glow plug, needle valve extension illustrated instruction
manual

REQUIRES: Aircraft blend fuel containing 5%-20% Nitromethane with at least 18%
lubricant
Propeller: 14×8, 15×6-8, 16×6-8
Glow starter and field equipment

SPECS: Displacement: 0.949 cu in (15.55cc)
Bore: 1.091″ (27.7mm)
Stroke: 1.016″ (25.8mm)
Practical RPM: 2,000-16,000 RPM
Power Output: 2.9ps/15,000 RPM
Weight: 20 ounces (567g) w/o muffler
Recommended Props: 14×8, 15×6-8, 16×6-8
Crankshaft thread size: 5/16-24
Distance from center of engine to drive hub: 2.6″ (66.6mm)
Height from crankcase bottom to top of cylinder head: 4″ (102mm)
Height/crankshaft center to top of cylinder head: 3.2″ (81.3mm)
Width including mounting tabs: 2.4″ (61mm)
Width below mounting tabs: 1.7″ (42.6mm)
Width between mounting holes same side: 0.98″ (25mm)
Width between mounting holes opposite side: 2″ (52mm)
Diameter of muffler body: 1.8″ (45mm)
Distance from Center of Engine to Exhaust Outlet: 4.4″ (112mm)
Angle of muffler in relation to engine: 4°

High Speed Needle: 1.5 – 2 turns out from fully closed
Low Speed Needle: 2mm gap between the needle and spray bar at full
throttle (looking down the neck of the carb)
