OS Max OS Max 17400 75AX ABL .75 Airplane Glow Engine W/Muffler

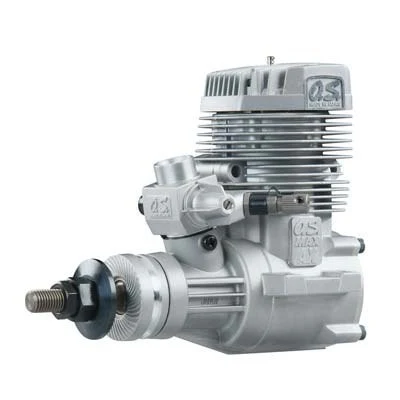

This is the O.S. Max .75 AX ABL Aircraft Engine with Muffler.

**Additional Technical Info Will Be Added When It Becomes Available.**

FEATURES: Same mounting dimensions as the O.S. Max .61FX
Advanced Bi-Metallic Liner process uses a double layer of plating
material rather than one thick layer. This helps the metal bond to
the cylinder and makes the plating more durable. Also the plating
process is more consistent resulting in a more precise fit between
piston and sleeve for better compression and longer life.
Power Box muffler design provides more volume for increased power in
a very compact shape
Angular head design offers increased surface area for better cooling
Ball bearing-supported crankshaft
— carburetor with diagonally placed needle valve eliminating remote
needle valve placement
Two year limited warranty

INCLUDES: O.S. Max 75 AX ABL Aircraft Engine with E3010 muffler carburetor
glow plug illustrated instruction manual

REQUIRES: Aircraft blend fuel containing 5%-20% Nitromethane with at least 18%
lubricant

SPECS: Displacement: 0.75 cu in (12.3cc)
Bore: 1.02″ (25.8mm)
Stroke: 0.93″ (23.5mm)
Practical RPM:
Power Output:
Weight: 19.4 oz (550g)
Recommended Props: 14×6 14×8 15×7
Crankshaft thread size:
Distance/remote needle to end of crankshaft:
Distance from center of engine to drive hub:
Distance from center of engine to end of crankshaft:
Distance/crankshaft center to muffler exhaust outlet:
Height from crankcase bottom to top of cylinder head:
Height/crankshaft center to top of cylinder head:
Width including mounting tabs:
Width not including mounting tabs:
Width between mounting holes same side:
Width between mounting holes opposite side:
Diameter of muffler body:
Angle of muffler in relation to engine:
